Burst Pressure Test Skid
Model: WY-1050W-J2
Our team of experienced engineers and technicians work closely with clients to customize the skid to meet their specific testing requirements, ensuring that the equipment meets the highest standards of quality and reliability.
Description
Overview
The skid can be used for pressure test on the wellhead, underground and on the ground. The equipment uses compressed air as the power source to quickly press the test medium, and can display, print and save the pressure curve.
Feature
Stainless steel material withstanding harsh conditions.
The electrical component interfaces are placed in the explosion-proof box.
Flow chart of boosting etched on the control panel surface of the booster unit.
With digital remote recording, real-time data display monitoring, issuing experimental reports, historical data check functions.

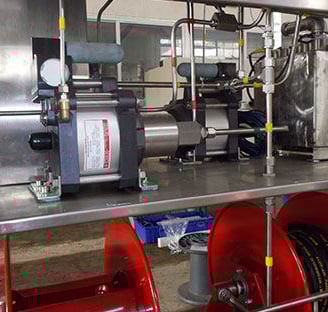

Adopts air-driven hydro pump as the boosting unit, which have pressure self-locking function and effectively avoid overpressure.
The uniquely designed rope-retractor structure enables the coiling of the pipeline to be more regular and at the same time preliminary cleaning.
The large-displacement low-pressure pump and the small-displacement high-pressure pump are configured to achieve functional control of different pressures, flow rate, and compression times.
Model: WY-1050W-J2
Parameter
Model: WY-1050W-J2
Connection
Low Pressure Pump – Hydraulic Pressure Static Conditions (@7bar)
Structure
High Pressure Pump – Hydraulic Pressure Static Conditions (@7bar)
