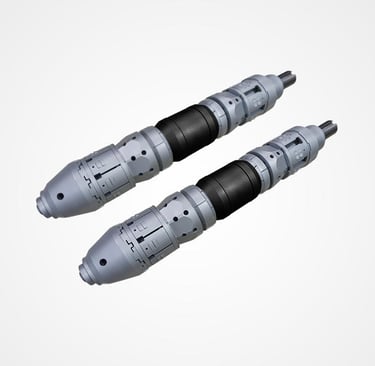

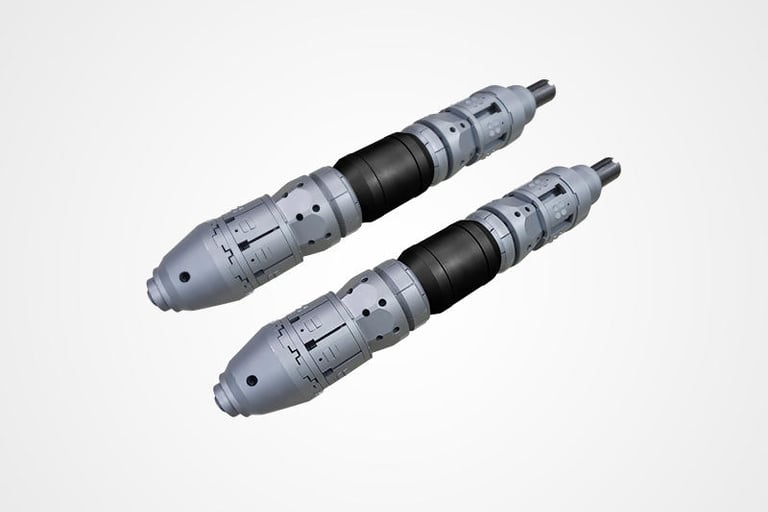

Disintegrating Frac Plug Coiled Tubing Downhole Tools
Conventional mechanical plugs can become obstacles, requiring costly and time-consuming mill-out or wireline operations, leading to significant delays and increased operational risks.
Enter the disintegrating frac plug, a cutting-edge solution engineered with advanced materials that dissolve in selected completion fluids. These plugs are designed to function under high pressure and temperature, providing robust downhole isolation during fracturing processes. Once the desired production stage is complete, the plugs seamlessly disintegrate, leaving no residual materials to hinder the flow of oil or gas.
Description

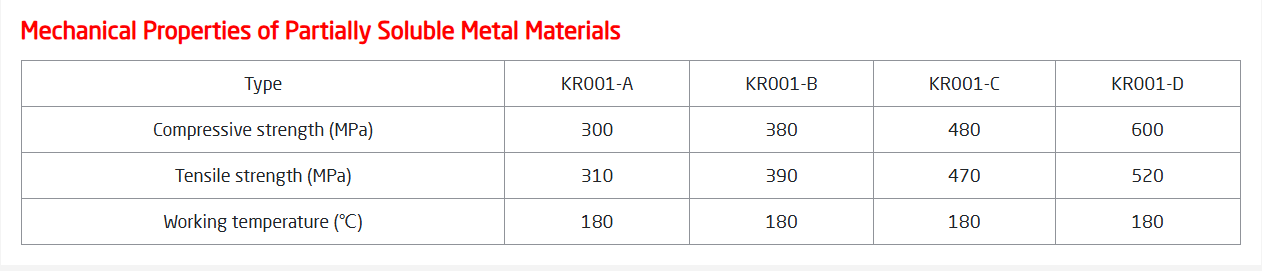

01-Self-made multi-strength soluble metal manufacturing, dissolution time on demand transformation
The main body of our company’s soluble bridge plugs is made of self-developed multi-strength soluble magnesium metal composite. After the core material composite application, the dissolution time of the whole machine is completely consistent, no residue, no toxicity, according to the on-site water quality and work. It is necessary to adjust the formula at any time to change the unique advantage of dissolution time.
The modulus of elasticity is about 70~80 KN/m㎡.
It can be used for sliding sleeves with a range of 1/10 in.
Solved the problem of material strength stability at high temperatures.
The maximum compressive strength of high temperature is adjustable from 550 to 650 MPa.

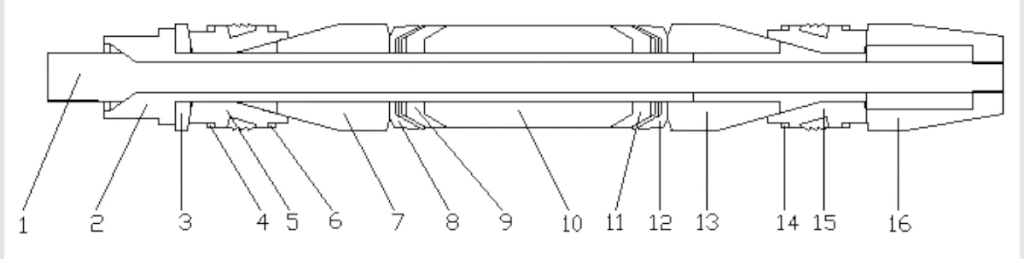

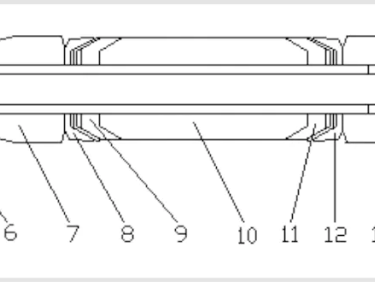

Operation Principle
