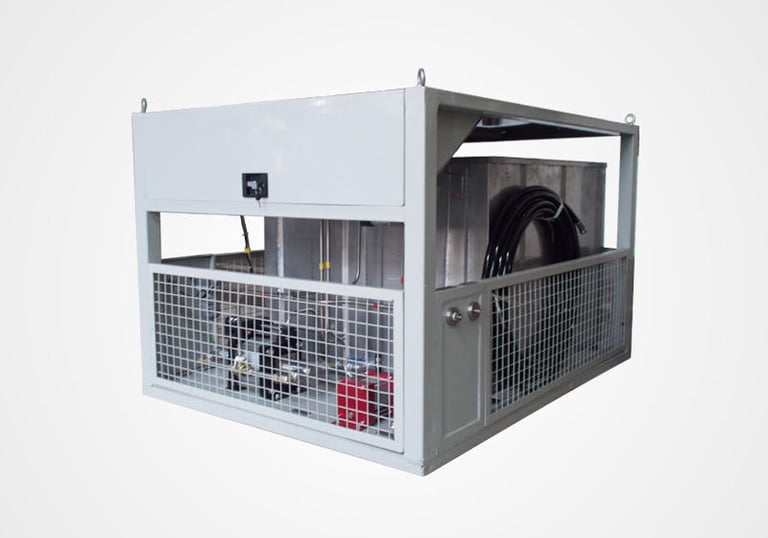

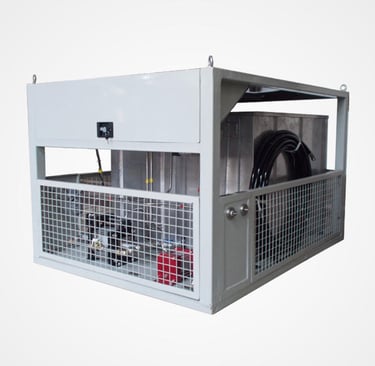

Pneumatic Pressure Test Bench with PC Recorder and Liquid Storage Tank

Model: WY-700W-J2

This advanced test bench is equipped with a PC-based recorder, which enables the accurate measurement and recording of pressure, flow rate, and temperature data. The system’s data acquisition software enables the recording and analysis of test data, including pressure, flow rate, and temperature profiles.

Oilfield Equipment

Description

Overview

This is a pressure test device with a liquid storage tank and electronic recording. It uses compressed air as a power source, is equipped with a 1000L liquid storage tank, quickly pressurizes the test medium, and can display, print and save the pressure curve.

Feature

Parameter

Stainless steel material withstanding harsh conditions.
The electrical component interfaces are placed in the explosion-proof box.
Flow chart of boosting etched on the control panel surface of the booster unit.
Equipped with a large-capacity liquid storage tank, which can carry the media for on-site operation.
With digital remote recording, real-time data display monitoring, issuing experimental reports, historical data check functions.
Adopts air-driven hydro pump as the boosting unit, which have pressure self-locking function and effectively avoid overpressure.
The uniquely designed rope-retractor structure enables the coiling of the pipeline to be more regular and at the same time preliminary cleaning.
The large-displacement low-pressure pump and the small-displacement high-pressure pump are configured to achieve functional control of different pressures, flow rate, and compression times.
