Portable Gas Booster System
Model: WY-1000N-BJ0
It’s the essential tool for various industry applications, offering increased efficiency, safety, and convenience in handling high-pressure gases. These systems are designed to provide a compact and versatile solution for boosting gas pressure in a wide range of settings, from laboratory research to industrial processes.
Overview

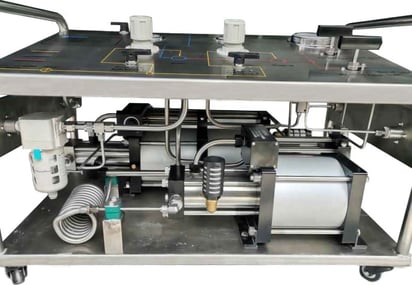

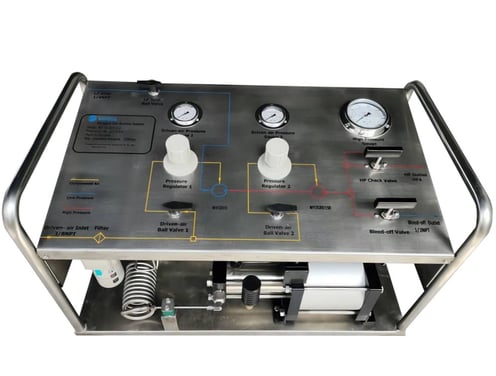

WY-1000N-BJ0 Portable Gas Booster System is a kind of pressure test equipment developed and produced by Wingoil to meet the injection of different media such as Nitrogen and CO2 media. It has a compact structure, and the overall no-load design weight is about 82kg. The equipped pumps, valves, and pipelines are made of stainless steel, which can withstand the harsh working conditions of high temperatures and high pressure. The equipment uses compressed air as the power source, with low energy consumption. This equipment is suitable for Nitrogen and pressure tests of various pressure vessels, pipelines, and valves.
WY-1000N-BJ0 is customized according to the requirements of customers. It is mainly used for the pressurization equipment of Nitrogen pressurization. The theoretical maximum service pressure of the equipment is 15,000 psi / 1,000 bar.
Characteristic
Pressure is displayed by a double-scale vibration-proof pressure gauge.
Use low-pressure compressed air as driven power to keep convenience and safety.
The equipment adopts a portable structure, with lightweight and convenient transportation and movement.
Low-pressure compressed air is used as the booster power source, which is convenient, safe, and environmentally friendly.
With the function of pressure self-locked to adjust output pressure remains constant in case of overshoot under air-driven pressure setting constant.

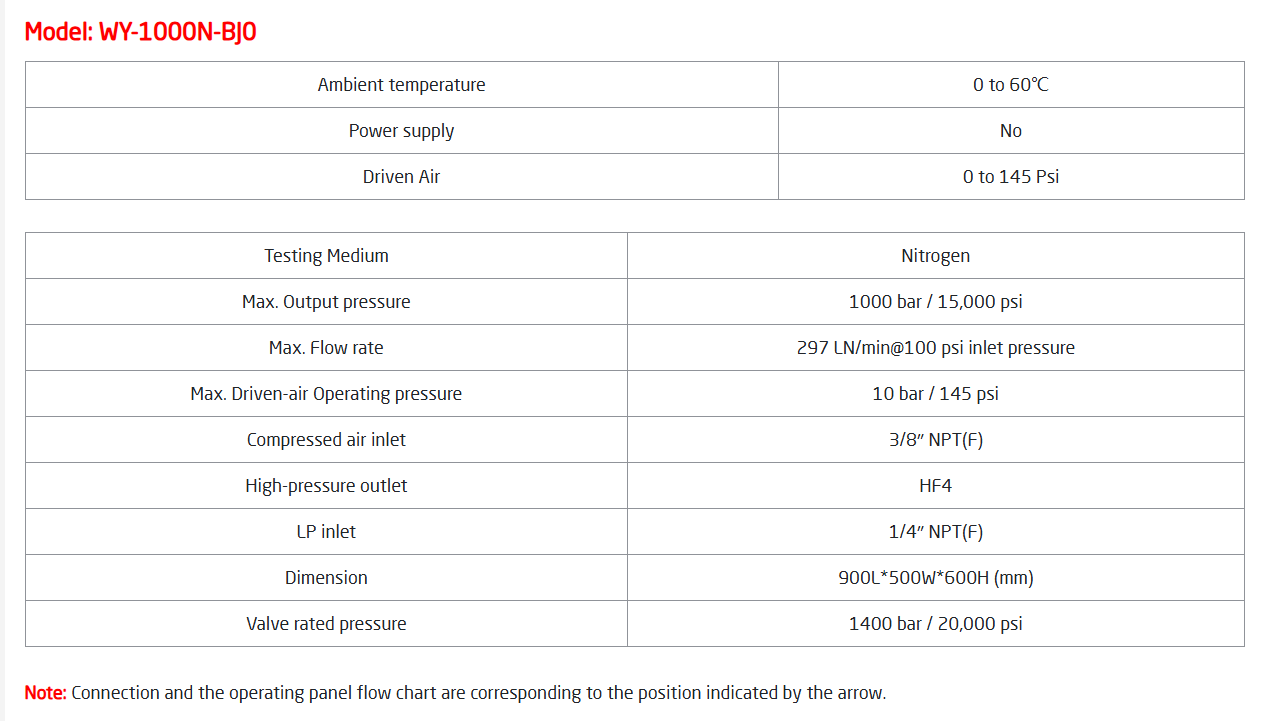

Description
